BIS 230 (D)

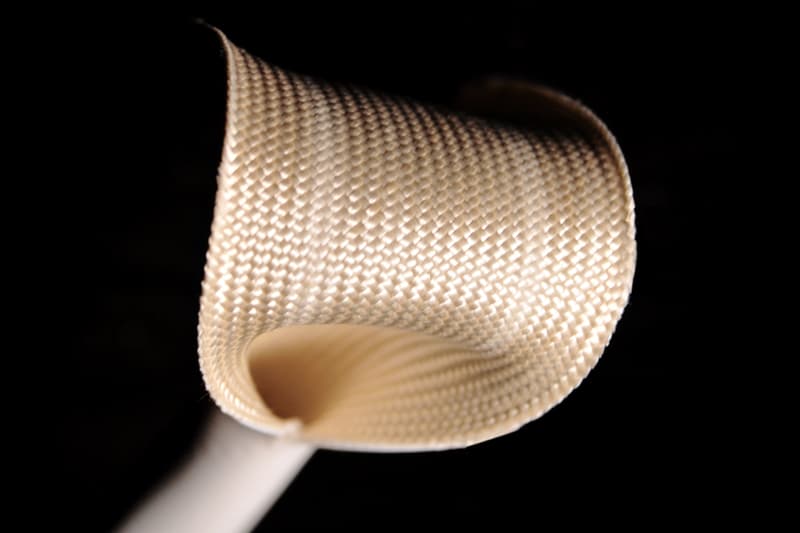

Silicone-coated fiberglass sleeve
Used primarily for its high temperature resistance, BIS 230 (D) is protective insulating sleeving made of fiberglass that is coated with silicone rubber.
Product data sheet PDFUsed primarily for its high temperature resistance, BIS 230 (D) is protective insulating sleeving made of fiberglass that is coated with silicone rubber.
Product data sheet PDFTechnical Specifications | |
---|---|
Material | Fiberglass with silicone-rubber coating |
Properties | high temperature resistance, highly flexible |
Operating temperature min. | -60 °C |
Operating temperature max. | 220 °C |
Diameter inside from (mm) | 0,50 |
Diameter inside up to (mm) | 20,00 |
Colors | black natual-colored |
Type | inside diameter | Wall thickness | PU (roll) |
---|---|---|---|
0.50 | 0.50 +-0.10 mm | 0.25 - 0.50 mm | 200 m |
0.80 | 0.80 +-0.10 mm | 0.25 - 0.50 mm | 200 m |
1.00 | 1.00 +-0.20 mm | 0.25 - 0.70 mm | 200 m |
1.50 | 1.50 +-0.20 mm | 0.35 - 0.70 mm | 200 m |
2,00 | 2.00 +-0.20 mm | 0.35 - 0.80 mm | 200 m |
2.50 | 2.50 +-0.20 mm | 0.40 - 0.80 mm | 200 m |
3.00 | 3.00 +-0.20 mm | 0.40 - 0.80 mm | 200 m |
4.00 | 4.00 +-0.25 mm | 0.50 - 0.80 mm | 200 m |
5.00 | 5.00 +-0.25 mm | 0.50 - 0.80 mm | 200 m |
6.00 | 6.00 +-0.25 mm | 0.50 - 0.80 mm | 100 m |
8.00 | 8.00 +-0.25 mm | 0.50 - 1.00 mm | 100 m |
10.00 | 10.00 +-0.50 mm | 0.65 - 1.10 mm | 50 m |
12.00 | 12.00 +-0.50 mm | 0.65 - 1.20 mm | 50 m |
14.00 | 14.00 +-0.50 mm | 0.65 - 1.20 mm | 50 m |
16.00 | 16.00 +-1.00 mm | 0.65 - 1.20 mm | 50 m |
18.00 | 18.00 +-1.00 mm | 0.65 - 1.20 mm | 50 m |
20.00 | 20.00 +-1.00 mm | 0.65 - 1.20 mm | 50 m |
