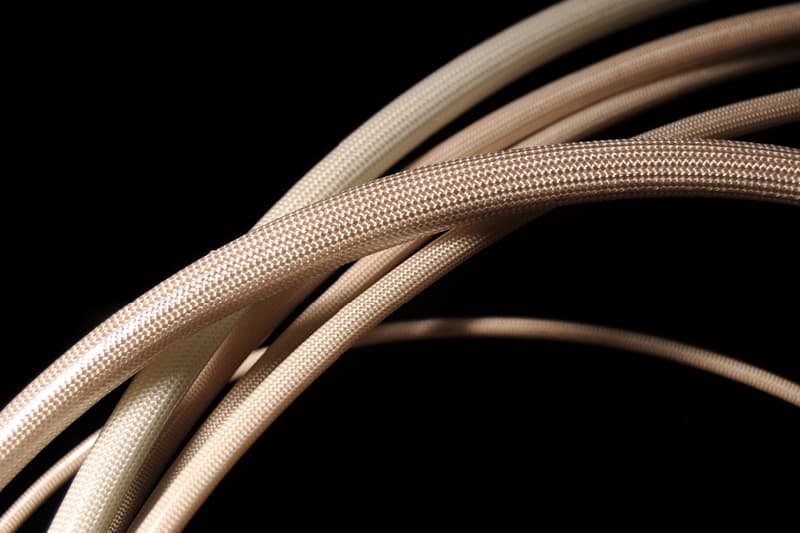

BIS 155 (D) is temperature-resistant insulating fiberglass sleeving coated with polyurethane varnish. It is mainly used for bundling, insulation and protection of cables and Litz-type wire strands.
Product data sheet PDF| Technical Specifications | |
|---|---|
| Material | Fiberglass coated with polyurethane varnish |
| Properties | flexible |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 155 °C |
| Diameter inside from (mm) | 0.50 |
| Diameter inside up to (mm) | 12.00 |
| Colors | black natual-colored |
| Type | inside diameter | Wall thickness | PU (roll) |
|---|---|---|---|
| 0.5 | 0.50 +0.30 mm | 0.50 +-0.15 mm | 200 m |
| 0.8 | 0.80 +0.40 mm | 0.50 +-0.15 mm | 200 m |
| 1.0 | 1.0 +0.40 mm | 0.50 +-0.15 mm | 200 m |
| 1.5 | 1.5 +0.40 mm | 0.50 +-0.15 mm | 200 m |
| 2.0 | 2.0 +0.40 mm | 0.50 +-0.15 mm | 200 m |
| 2.5 | 2.5 +0.40 mm | 0.50+-0.15 mm | 200 m |
| 3.0 | 3.0 +0.50 mm | 0.50 +-0.15 mm | 200 m |
| 3.5 | 3.5 +0.50 mm | 0.50 +-0.15 mm | 200 m |
| 4.0 | 4.0 +0.50 mm | 0.50 +-0.15 mm | 200 m |
| 4.5 | 4.5 +0.50 mm | 0.50 +-0.15 mm | 200 m |
| 5.0 | 5.0 +0.50 mm | 0.50 +-0.15 mm | 100 m |
| 6.0 | 6.0 +0.50 mm | 0.50 +-0.15 mm | 100 m |
| 7.0 | 7.0 +0.50 mm | 0.50 +-0.15 mm | 100 m |
| 8.,0 | 8.0 +0.60 mm | 0.70 +-0.20 mm | 100 m |
| 9.0 | 9.0 +0.60 mm | 0.70 +-0.20 mm | 100 m |
| 10.0 | 10.0 +0.60 mm | 0.70 +-0.20 mm | 50 m |
| 12.0 | 12.0 +0.60 mm | 0.70 +-0.20 mm | 50 m |
| 14,0 | 14.0 +0.60 mm | 0,70 +-0,20 mm | 50 m |
| 16,0 | 16.0 +0.60 mm | 0,70 +-0,20 mm | 50 m |
| 18,0 | 18.0 +0.60 mm | 0,70 +-0,20 mm | 50 m |
