cold shrink tubing
14.03.2023
What are cold shrink sleeves?
Cold shrink tubing is designed to be applied without additional heat or tools. They are made of a material that contracts at room temperature when the inner helix is removed. This creates a tight, tight protection around the cable or wire.
Cold shrink tubing – What are the advantages of this material?
Cold shrink tubing is ideal for applications where quick and easy installation is required, or when a heat source such as a hot air gun or gas torch is not safe or practical.
Another advantage of cold-shrink tubing is its ability to provide a tight, reliable seal. The tubing shrinks tightly around the object, creating a barrier against moisture, dirt and other harmful elements. This is especially important in applications where electrical connections must be protected from moisture and corrosion.
In electrical and telecommunications applications, cold shrink tubing is often used to insulate cables and wires. The sleevings provide additional protection against short circuits and other electrical disturbances, while ensuring a strong and reliable connection. They can also help protect cables and wires from mechanical damage.
In the automotive industry, cold shrink tubing is used to connect and protect cables and hoses. The hoses are very durable and can withstand the high temperatures and vibrations that can occur in an automotive engine. They also provide added protection against moisture and corrosion, which can help extend the life of parts and components.
Overall, cold shrink tubing is an excellent choice for a variety of applications where reliable sealing and protection is required. They are easy to install, durable and can withstand the rigors of demanding applications. If you are looking for an effective way to connect and protect cables, wires or pipes, consider using cold shrink tubing.
BHW CS cold shrink tubing is available in the following dimensions:
| Cold shrink tubing | Ø before shrinking | Ø after shrinking | wall thickness after shrinking | length |
| BHW CS1 | 20,00 mm | 8,00 mm | 2,00 mm | 0,30; 0,45 m |
| BHW CS3 | 32,00 mm | 12,00 mm | 2,50 mm | 0,30; 0,49 m |
| BHW CS5 | 35,00 mm | 16,00 mm | 2,00 mm | 0,18; 0,30; 0,45 m |
| BHW CS6 | 40,00 mm | 18,00 mm | 2,00 mm | 0,18; 0,25; 0,35; 0,45 m |
| BHW CS7 | 47,00 mm | 21,00 mm | 2,00 mm | 0,18; 0,30; 0,45 m |
| BHW CS8 | 53,00 mm | 25,00 mm | 2,00 mm | 0,25; 0,35; 0,50 m |
| BHW CS9 | 65,00 mm | 26,00 mm | 3,00 mm | 0,35; 0,42; 0,50 m |
| BHW CS10 | 70,00 mm | 30,00 mm | 3,00 mm | 0,35; 0,42; 0,50 m |
| BHW CS11 | 80,00 mm | 36,00 mm | 3,00 mm | 0,35; 0,42; 0,50 m |
| BHW CS12 | 104,00 mm | 42,00 mm | 3,00 mm | 0,42; 0,50 m |

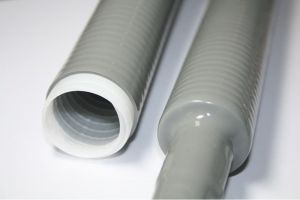

cold shrink tubing - BHW CS
